Features
The standard lineup has a length of 90mm.

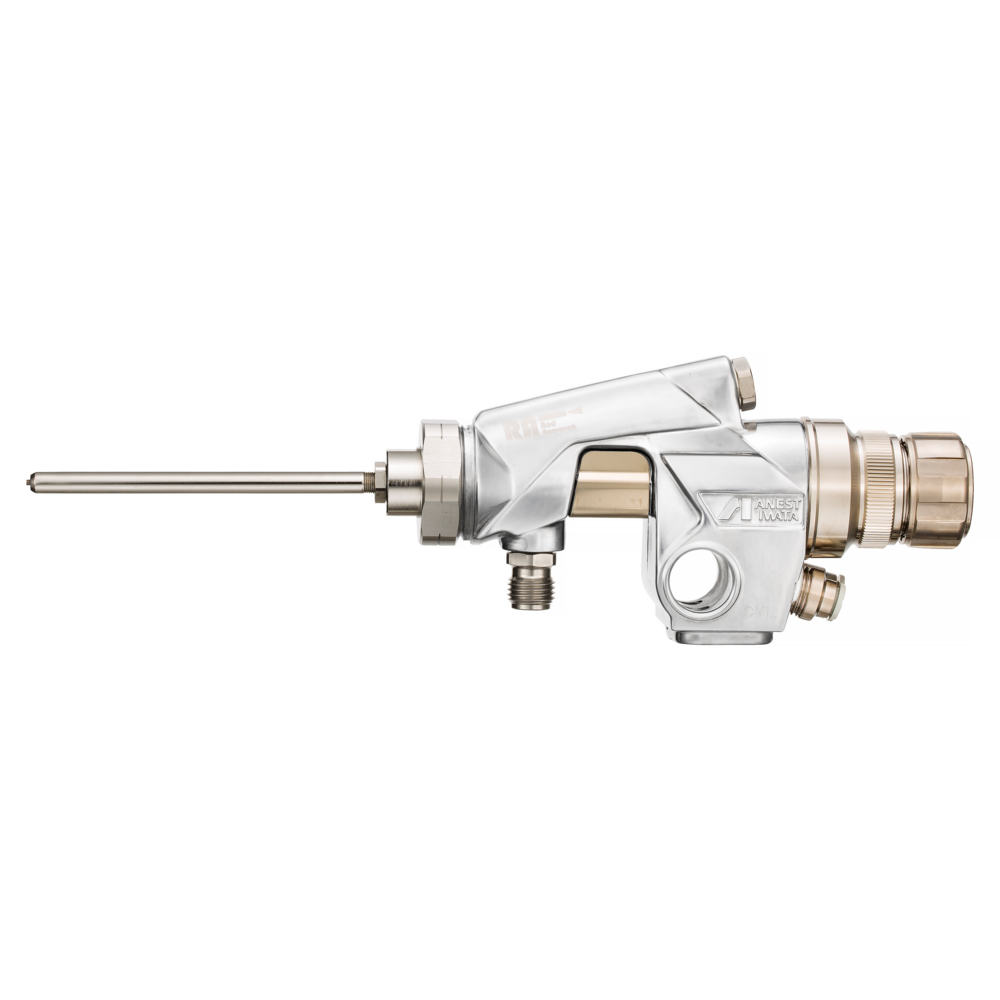

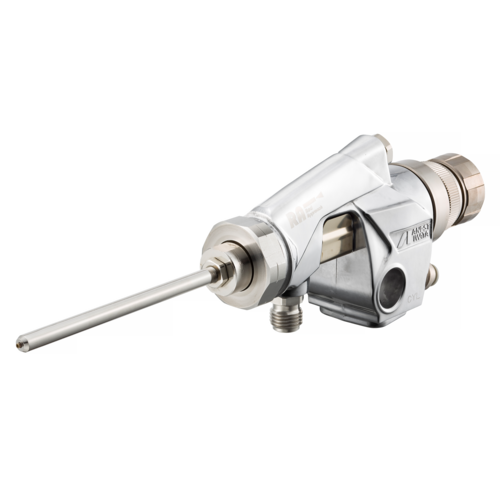

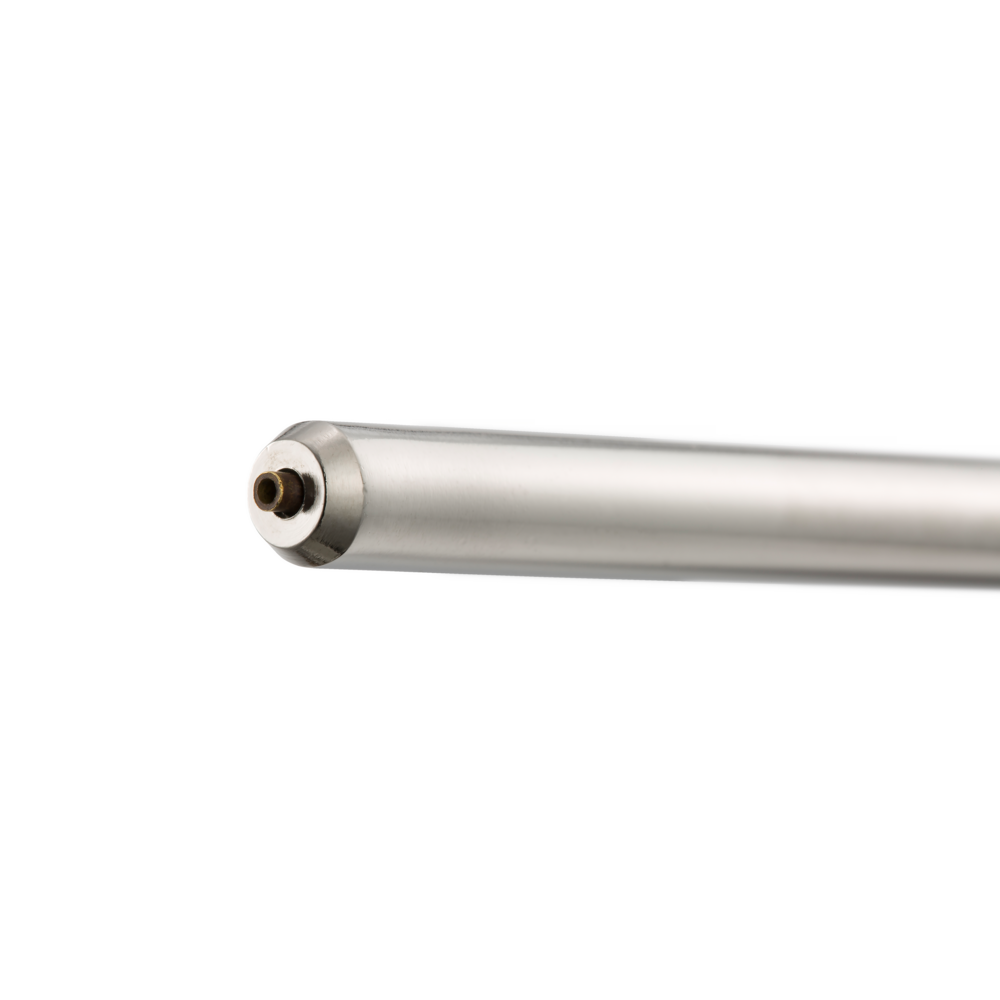

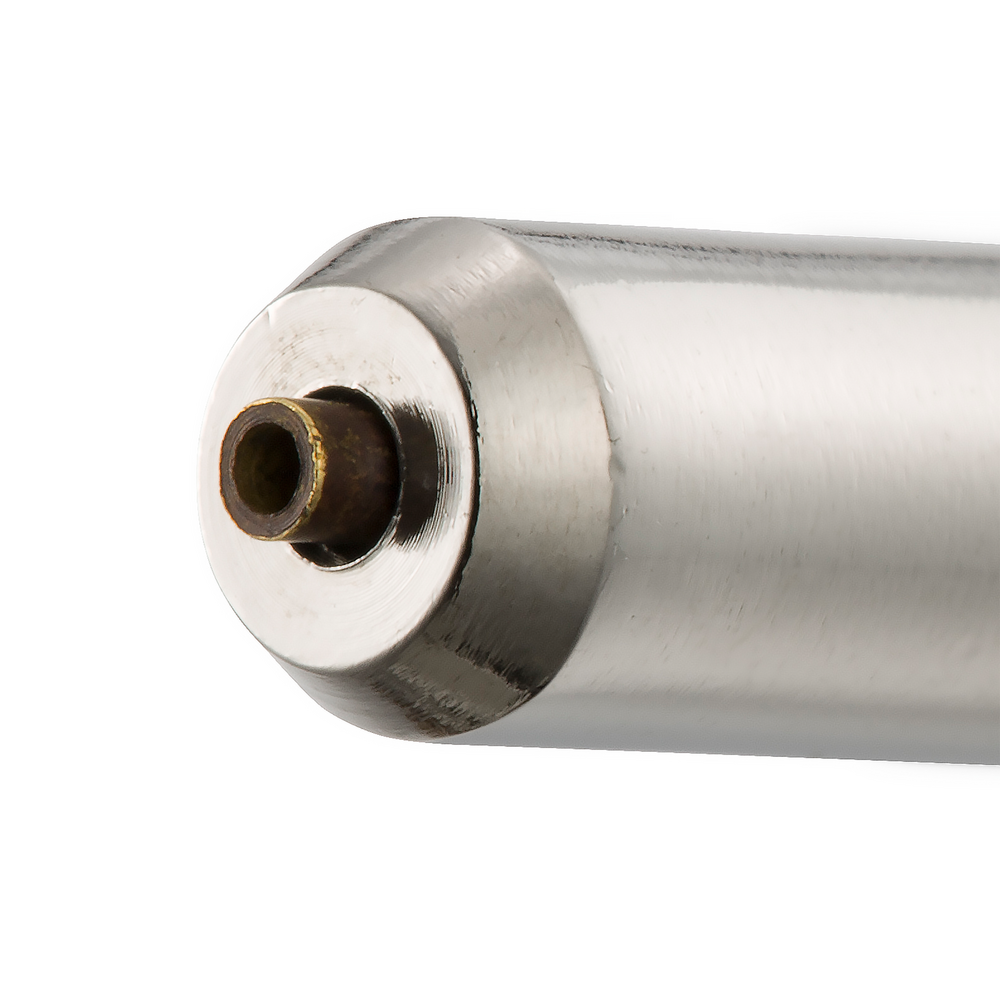

This is a round type spray gun with a long neck tip. Unlike single-angle spray guns, there is no spray angle.
Since it can be sprayed in close proximity, scattering can be suppressed and masking efforts can be reduced.
◆Liquids used: Paints, rust preventives, functional agents, etc.
◆Viscosity range used: Within 15 seconds/NK-2 (40mPa･s).
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks | Length [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RA1-A10-0690 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
