Features

Simply place the spray gun and cup into the cleaning chamber and press the pedal to automatically clean paint passages and exterior surfaces.
Cleaning thinner can be recycled.
It prevents mist and odors from scattering and is ideal for improving the working environment.

specification

formatDrive sourcePump methodTimer methodSupply air pressure [MPa]Air consumption [L/min]Ejection amount [L/min]cleaning liquidAir connection fittingsMethod of operationCompatible cansWashing chamber materialOverall width x depth x overall height [mm]Weight [kg]Environmental temperature range [℃]

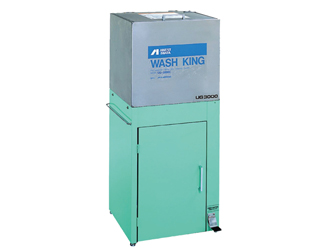

UG-3000C Compressed air air driven diaphragm pump Wind-up mechanical timer (washing time set to 47 seconds) 0.49～0.59 50 to 150 (when supply air pressure is 0.49MPa) Approximately 12 to 15 (when supply air pressure is 0.49MPa) cleaning thinner Rc1/4 female pedal foot type 18 liter square can, 20 liter pail can stainless 345×440×990 twenty two 5~45
