Purpose
・ Light and compact with a shape that fits in your hand
・ Internal boost type eliminates the need for a high voltage generator
・ Only 100V power supply and compressed air are connected
・ Power cable is replaceable
・ Equipped with a wave-type nozzle (SER-24PA only)
Pulse air removes dust attached due to static electricity
specification
| format | High voltage generator [kV] | Ion generation method | Operating air pressure [MPa] | Air consumption [L/min] | Static elimination gun/nozzle | Power supply used [V] | Power cord [m] | High voltage cable [m] | Air hose [Φ/m] | air joint | Mass [g] | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

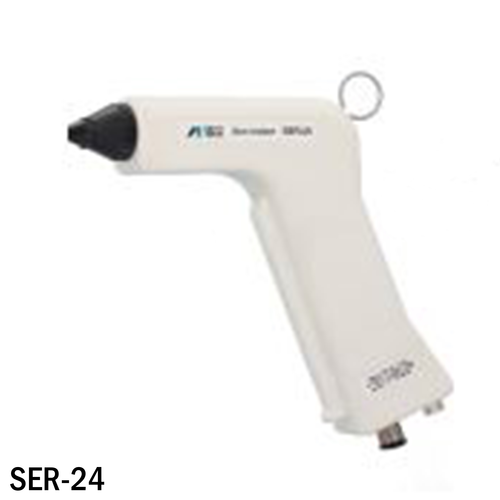

| SER-24 | AC2 or higher | High frequency AC corona discharge type | 0.1-0.6 | max 370 | Resin air gun/round nozzle | Single phase 100-240 (50/60Hz) | 3 | - | - | One-touch fitting (Φ6) | Approximately 200 (not including code) | -- |

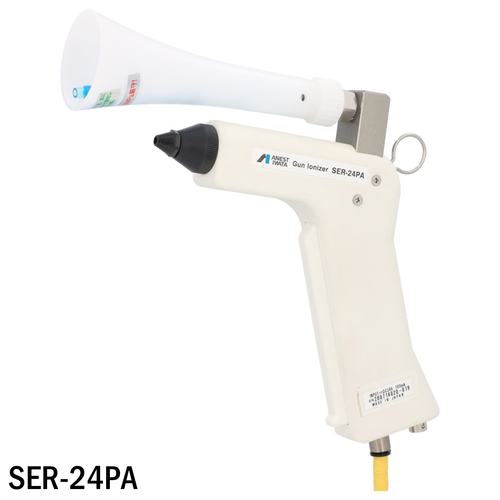

| SER-24PA | AC2 or higher | High frequency AC corona discharge type | 0.3-0.6 | max 320 | Resin air gun/round nozzle | Single phase 100-240(50/60Hz) | 3 | - | - | One-touch fitting (6Φ) | Approximately 300 (not including cord) | -- |
