By incorporating it into the paint piping together with the paint pressure reducing valve, it is possible to construct a paint circulation system.

To prevent settling of paints that tend to settle, such as metallic paints, and to stabilize paint pressure when using multiple spray guns, it is possible to build a paint circulation system by incorporating it into the paint piping together with a paint pressure reducing valve.
Quantitative control is possible by installing it on the paint return side of the paint circulation system.

specification

formattypeMain body connection part materialPressure adjustment range [MPa]Maximum air primary pressure [MPa]Maximum working pressure [MPa]Maximum flow rate [L/min]Maximum primary pressure [MPa]Maximum paint primary pressure [MPa]Paint/fluid inletPaint/fluid outletOperating ambient temperature [℃]Working fluid temperature [℃]Overall length x overall width x overall height [mm]Mass [g]Installation dimensions (front)accessoriesremarks

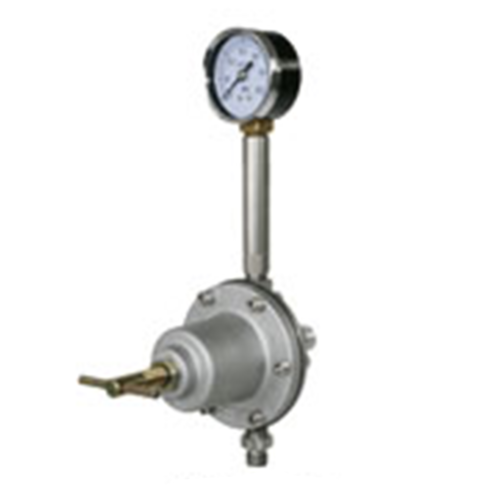

PR-B5B General purpose aluminum 0~0.6 -- 0.6 2.0 0.6 0.6 G1/4B male G3/8B male 5～40 5～43 84×165×260 850 2₋M5×0.8, thread depth 8mm, spacing 22mm -- --
PR-B5BN General purpose stainless 0~0.6 -- 0.6 2.0 0.6 0.6 G1/4B male G3/8B male 5～40 5～43 84×165×260 1,020 2₋M5×0.8, thread depth 8mm, spacing 22mm -- --
