Features
Portable: Compact size of 60 x 30 cm, easy to carry
Low discharge/stable supply: Stable supply without pulsation is possible even at low discharge volumes of 50 mL or less
Shorter cleaning time: When you want to shorten cleaning time by changing colors, etc. Prepare a type with a cleaning shortening mechanism to be applied.
Reduction in cleaning thinner: Can be cleaned with approximately 1/6 to 1/8 the amount compared to conventional paint pumps
High reproducibility: Repeated discharge accuracy can be maintained within ±2%. In addition, fine adjustment operations are easy.
Notes on the paint used.
*If paint containing abrasive pigments is used, the life may be extremely shortened.
*For gear pumps on the hardener side used in two-liquid systems, the hardener will solidify on the bearings, so overhaul them periodically every 1 to 2 months.
*Cannot be used for paints that deteriorate or harden when shearing force is applied (emulsion paints, dispersion paints, UV paints).
specification
| format | Wetted parts material | Flow rate adjustment range [mL/min] | Motor specifications Allowable rotation speed [rpm] | Motor specifications Reduction ratio | Motor specifications Power capacity | Motor specifications explosion-proof | Discharge accuracy [%] | Cable length [m] | Gear pump specifications | Discharge volume [mL/rotation] | Recommended discharge volume range [mL/min] | Maximum allowable rotation speed [rpm/min] | Maximum working pressure [MPa] | Flushable working pressure [MPa] | Usable viscosity | Compatible paint | Operating ambient temperature [℃] | Working fluid temperature [℃] | Paint/fluid joint inlet size | Paint/Fluid Joint Outlet Size | Overall length x overall width x overall height [mm] | Mass [kg] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

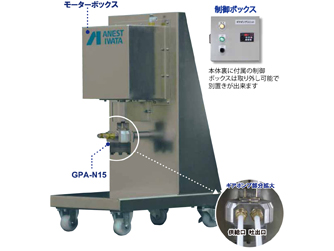

| GPU-F15-20 | SUS | IN G1/4B OUT G1/4B | 10～75 | 20:1 | 3 phase 200V 0.1kW | Simple air purge | ±2 | 3 | GPA-N15 | 1.5 | 10～100 | 250 | 2.0 | 0.3～0.5 | 30 seconds/NK-2 or less | solid metallic paint | 5～40 | 5～43 | G1/4B male | G1/4B male | 300×450×660 | 31 | -- | -- |
| GPU-N15-20 | SUS | IN G1/4B OUT G1/4B | 10～75 | 20:1 | 3 phase 200V 0.1kW | Simple air purge | ±2 | 3 | GPA-F15 | 1.5 | 10～100 | 250 | 2.0 | ⁻ | 30 seconds/NK-2 or less | solid metallic paint | 5～40 | 5～43 | G1/4B male | G1/4B male | 300×450×660 | 31 | -- | -- |
