Keep the paint pressure constant to ensure uniform paint film thickness.

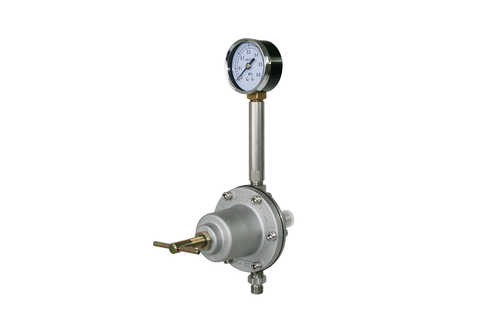

The diaphragm type paint pressure reducing valve makes it possible to maintain a constant paint pressure and discharge rate for painting quality control such as uniform paint film thickness. Two types are available to suit the pressure adjustment range. Like the diaphragm pump, the wetted parts of the main body have been given a mirror finish to improve cleaning performance.
specification
| format | type | Main body connection part material | Pressure adjustment range [MPa] | Maximum flow rate [L/min] | Maximum primary pressure [MPa] | Maximum paint primary pressure [MPa] | Paint/fluid inlet | Paint/fluid outlet | Operating ambient temperature [℃] | Working fluid temperature [℃] | Overall length x overall width x overall height [mm] | Mass [g] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PR-5B | General purpose | aluminum | 0～0.6 | 2.0 | 2.5 | -- | G3/8B male | G1/4B male | 5～40 | 5～43 | 84×165×260 | 850 | -- | -- |
| PR-51B | Vertical type | aluminum | 0～0.6 | 2.0 | 2.5 | -- | G3/8B male | G1/4B male | 5～40 | 5～43 | 84×141×220 | 900 | -- | -- |
| PR-5BL | For small quantity/low pressure discharge | aluminum | 0～0.3 | 1.5 | 0.7 | -- | G3/8B male | G1/4B male | 5～40 | 5～43 | 84×165×260 | 850 | -- | -- |
| PR-5BN | General purpose | stainless | 0～0.6 | 2.0 | 2.0 | -- | G3/8B male | G1/4B male | 5～40 | 5～43 | 84×165×260 | 1020 | -- | -- |
| PR-5BLN | For small quantity/low pressure discharge | stainless | 0～0.3 | 1.5 | 1.5 | -- | G3/8B male | G1/4B male | 5～40 | 5～43 | 84×165×260 | 1020 | -- | -- |
