Features

■Long maintenance cycle
By separating the paint chamber and air chamber with a bellows seal, we have realized a long maintenance cycle for the sliding parts.
■High pressure magnification for environmentally friendly paints
enables stable paint supply even with environmentally friendly high viscosity paints such as high solids and water-based paints.
■Since the discharge amount per cycle is large for multiple spray guns
, stable paint supply is possible even when multiple spray guns are used.

specification

formatPump body wetted parts materialDischarge amount at 30 cycles/min [L/min]Maximum discharge rate [L/min]Maximum number of cycles [cycles/min]Discharge volume per cycle [mL/cycle]Air pressure usage range [MPa]Maximum usable paint pressure [MPa]pressure magnificationUsable viscosity (recommended value) [mPa・s]Operating temperature range [℃]Operating ambient temperature [℃]Working fluid temperature [℃]Air supply portPaint/fluid inletPaint/fluid outletOverall length x overall width x overall height [mm]Mass [kg]Noise value [dB]accessoriesRequired compressor [kW]remarks

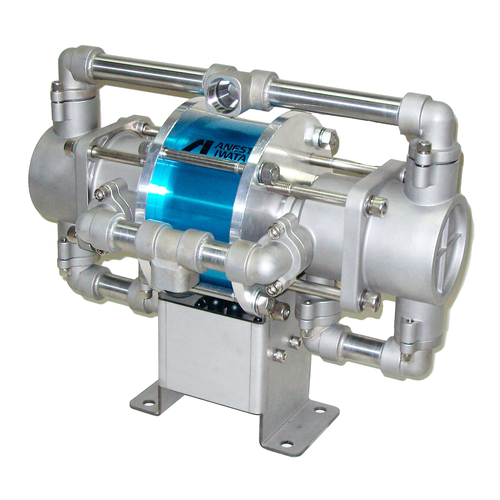

BSP-A030C-N stainless 17.1 40 70 570 0.15～0.7 -- 3:1 10,000 or less 5～40 5~40 -- Rc3/8 female Rp1 female Rp1 female 311×447×373 -- 83 -- 3.7～7.5 --
