Features

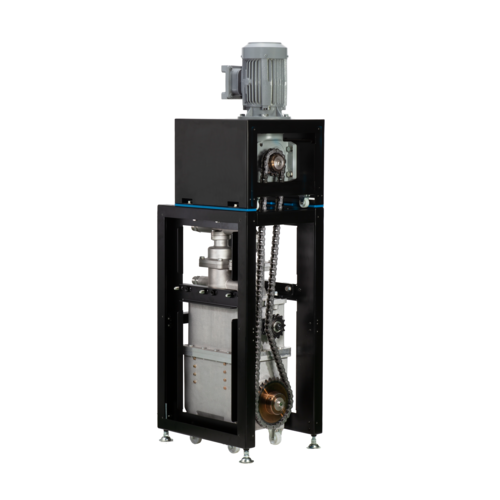

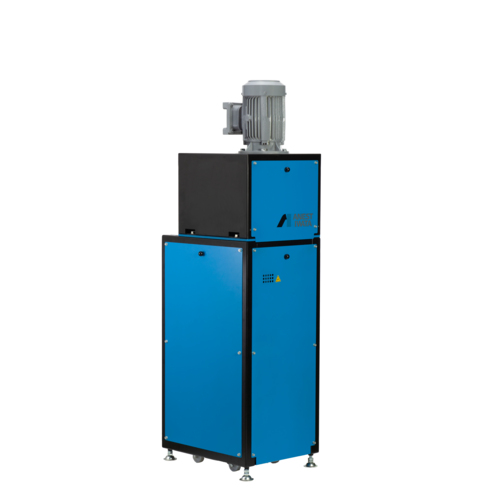

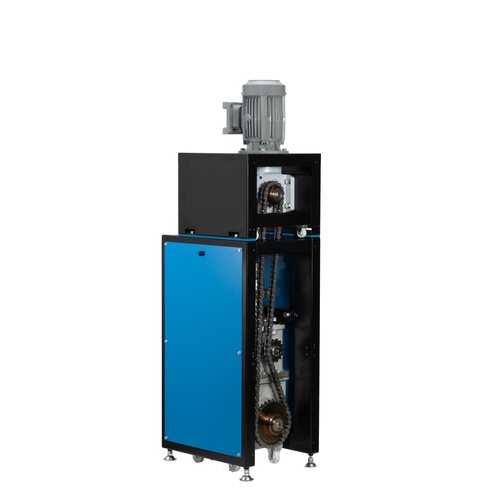

By adopting a vertical pump structure, our electric bellows seal
pump has achieved the world's smallest installation space for an electric bellows seal pump. The advantage is that you can maximize the use of space
by minimizing the space where the pumps are installed, making it easier to place multiple pumps . We have achieved the world's smallest space and a pump structure that allows air to escape easily.
specification
| format | Pump body wetted parts material | Discharge amount at 30 cycles/min [L/min] | Maximum discharge rate [L/min] | Maximum number of cycles [cycles/min] | Discharge volume per cycle [mL/cycle] | Air pressure usage range [MPa] | Maximum usable paint pressure [MPa] | pressure magnification | Usable viscosity (recommended value) [mPa・s] | Operating temperature range [℃] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Air supply port | Paint/fluid inlet | Paint/fluid outlet | Overall length x overall width x overall height [mm] | Mass [kg] | Noise value [dB] | accessories | Required compressor [kW] | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BSP-E07N | SUS303, SUS304, PA6, PE, special resin | 17.1 | 12.5 | 21.9 | 570 | -- | -- | -- | 200 | 5～40 | 5~40 | -- | G1 male | G1 male | G1 male | 500×400×1532.5 | 203 | 72 | -- | 0.75 | -- |
| BSP-E15BN | SUS303, SUS304, PA6, PE, special resin | 27.9 | 27.4 | 29.4 | 930 | -- | -- | -- | 200 | 5～40 | 5~40 | -- | G1 male | G1 male | G1 male | 500×400×1608.5 | 254 | 72 | -- | 1.5 | -- |
