Ideal for stable supply of paint.

- Stable supply of paint
In order to eliminate operational failures (switching failures) during pump operation, improvements have been made to the double spool structure air operated valve originally designed by ANEST Iwata, which has been adopted from previous models, and is now adopted in all models. This makes it extremely difficult to stop, making it compatible with lines and automatic machines, making it an even more reliable diaphragm pump.

・Reduced color change and cleaning time
All models feature a mirror finish on the inside of the paint chamber, allowing for color changes and cleaning in even shorter time periods, which also helps reduce the amount of cleaning fluid used and waste fluid.

- Wide variety of variations
You can choose from a total of 8 types of pumps according to the required discharge volume and type of paint. Furthermore, we will suggest the most suitable application for your work environment.


specification

formatPump body wetted parts materialDischarge amount at 30 cycles/min [L/min]Maximum discharge rate [L/min]Maximum number of cycles [cycles/min]Discharge volume per cycle [mL/cycle]Air pressure usage range [MPa]Maximum usable paint pressure [MPa]pressure magnificationUsable viscosity (recommended value) [mPa・s]Operating temperature range [℃]Operating ambient temperature [℃]Working fluid temperature [℃]Air supply portPaint/fluid inletPaint/fluid outletOverall length x overall width x overall height [mm]Mass [kg]Noise value [dB]accessoriesRequired compressor [kW]remarks

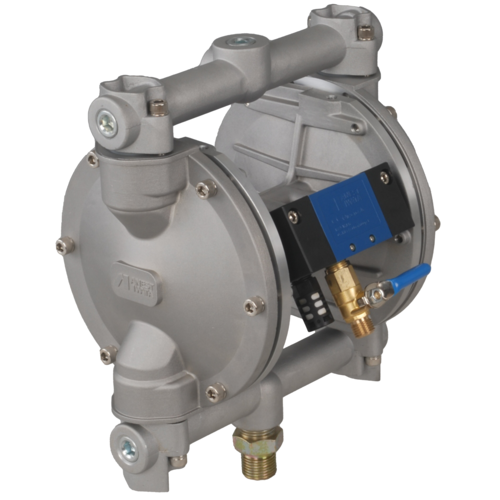

DDP-120B aluminum 4.5 30 200 150 0.15~0.7 0.7 1:1 300 or less (100 seconds/NK-2 or less) 5~40 5~40 -- G1/4B male G1/2B male Rc3/8 female 207×223×274 -- 70 -- 0.4~1.5 --
DDP-120BN stainless 4.5 30 200 150 0.15~0.7 0.7 1:1 300 or less (100 seconds/NK-2 or less) 5~40 5~40 -- G1/4B male G1/2B male Rc3/8 female 207×223×274 -- 70 -- 0.4~1.5 --
