Features
The maximum paint discharge amount is 30L, and it can also handle multiple gun removal.
The expanded diameter of the paint passage makes cleaning the interior easier and allows the use of high viscosity paint.
In addition to being used to pump hand sprayers, it is also used to pump paint to reciprocators, automatic paint machines, and painting robots.
Multi-gun removal is also possible.
specification
| format | old model | Pump body wetted parts material | Discharge amount at 30 cycles/min [L/min] | Maximum discharge rate [L/min] | Air pressure usage range [MPa] | Paint pressure reducing valve type | Paint pressure reducing valve wetted parts material | Paint pressure reducing valve Paint pressure adjustment range [MPa] | Paint pressure reducing valve maximum flow rate [L/min] | Usable viscosity (recommended value) [mPa・s] | Operating temperature range [℃] | Air supply port | Paint/fluid outlet | Paint/fluid inlet filter | Discharge volume per cycle [mL/cycle] | Optional paint intermediate filter | Optional paint agitator | Optional 2-piece kit | Overall length x overall width x overall height [mm] | Mass [kg] | Required compressor [kW] | accessories | remarks | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum working pressure [MPa] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

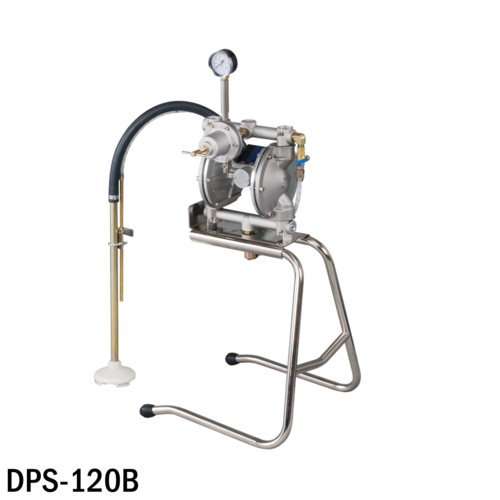

| DPS-120B | -- | aluminum | 4.5 | 30 | 0.15～0.7 | PR-5B | aluminum | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5~40 | G1/4B male | G1/4B male | 50 | 150 | TF-7 100 mesh | ⁻ | PR-5B-S1 | 356×269×491 | 6 | 0.4～0.75 | -- | -- | 70 | 5～40 | -- | 0.7 |
| DPS-120BN | -- | stainless | 4.5 | 30 | 0.15～0.7 | PR-5BN | stainless | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 150 | ⁻ | ⁻ | PR-5BN-S1 | 356×269×491 | Ten | 0.4～0.75 | -- | -- | 70 | 5～40 | -- | 0.7 |
| DPS-1204B | -- | aluminum | 4.5 | 30 | 0.15～0.7 | PR-5B | aluminum | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 150 | TF-7 100 mesh | - | PR-5B-S1 | 356×269×491 | 6 | 0.4～0.75 | -- | -- | 70 | 5～40 | -- | 0.7 |

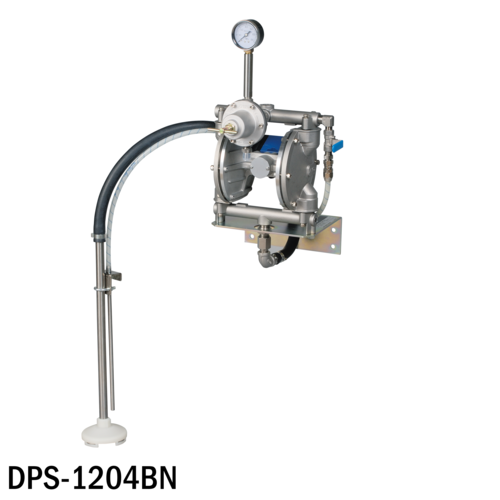

| DPS-1204BN | -- | stainless | 4.5 | 30 | 0.15～0.7 | PR-5BN | stainless | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 150 | ⁻ | - | PR-5BN-S1 | 356×269×491 | Ten | 0.4～0.75 | -- | -- | 70 | 5～40 | -- | 0.7 |

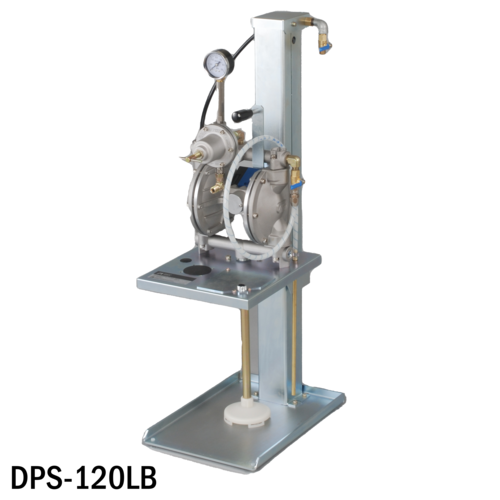

| DPS-120LB | -- | aluminum | 4.5 | 30 | 0.15～0.7 | PR₋5B | aluminum | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 150 | TF-7 100 mesh | AMM-721B | PR₋5B₋S1 | 390×260×823 | 18 | 0.4～0.75 | -- | -- | 70 | 5～40 | -- | 0.7 |
| DPS-120LBN | -- | stainless | 4.5 | 30 | 0.15～0.7 | PR₋5BN | stainless | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 150 | ⁻ | AMM-721B | PR-5BN-S1 | 390×260×823 | twenty two | 0.4～0.75 | -- | -- | 70 | 5～40 | -- | 0.7 |
| DPS-120LPB | -- | aluminum | 4.5 | 30 | 0.15～0.7 | PR-5B | aluminum | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 150 | TF-7 100 mesh | AMM-721B | PR₋5B₋S1 | 410×300×823 | 19 | 0.4～0.75 | -- | -- | 70 | 5～40 | -- | 0.7 |
| DPS-120LPBN | -- | stainless | 4.5 | 30 | 0.15～0.7 | PR-5BN | stainless | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 150 | ⁻ | AMM-721B | PR-5BN-S1 | 410×300×823 | twenty three | 0.4～0.75 | -- | -- | 70 | 5～40 | -- | 0.7 |

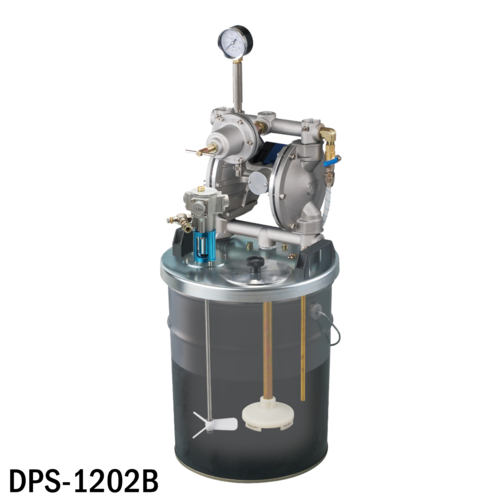

| DPS-1202B | -- | aluminum | 4.5 | 30 | 0.15～0.7 | PR-5B | aluminum | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 150 | TF-7 100 mesh | AMM-721B | PR-5BN-S1 | 307×325×729 | 7 | 0.4～0.75 | -- | -- | 70 | 5～40 | -- | 0.7 |
| DPS-1202BN | -- | stainless | 4.5 | 30 | 0.15～0.7 | PR-5BN | stainless | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 150 | ⁻ | AMM-721B | PR-5BN-S1 | 307×325×729 | 11 | 0.4～0.75 | -- | -- | 66 | 5～40 | -- | 0.7 |
