Purpose
・Automotive repair
・Automotive industry
・Metal painting
・Resin painting
・Woodwork painting
・Ironwork painting
・Architectural painting
specification
| format | old model | Pump body wetted parts material | Discharge amount at 30 cycles/min [L/min] | Maximum discharge rate [L/min] | Air pressure usage range [MPa] | Paint pressure reducing valve type | Paint pressure reducing valve wetted parts material | Paint pressure reducing valve Paint pressure adjustment range [MPa] | Paint pressure reducing valve maximum flow rate [L/min] | Usable viscosity (recommended value) [mPa・s] | Operating temperature range [℃] | Air supply port | Paint/fluid outlet | Paint/fluid inlet filter | Discharge volume per cycle [mL/cycle] | Optional paint intermediate filter | Optional paint agitator | Optional 2-piece kit | Overall length x overall width x overall height [mm] | Mass [kg] | Required compressor [kW] | accessories | remarks | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum working pressure [MPa] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

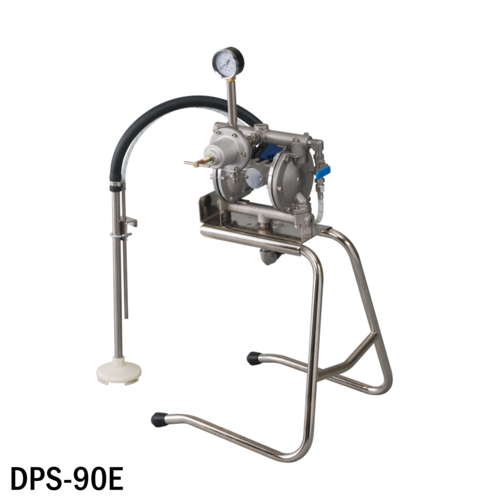

| DPS-90E | -- | aluminum | 1.5 | Ten | 0.15～0.7 | PR-5B | aluminum | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 50 | TF₋7 100 mesh | - | PR₋5B-S1 | 360×348×781 | 7.0 | 0.4～0.75 | -- | -- | 68 | 5～40 | -- | 0.7 |
| DPS-90EN | -- | stainless | 1.5 | Ten | 0.15～0.7 | PR-5BN-S1 | stainless | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5~40 | G1/4B male | G1/4B male | 50 | 50 | ⁻ | - | PR₋5B-S1 | 360×348×781 | 9.0 | 0.4～0.75 | -- | -- | 68 | 5～40 | -- | 0.7 |

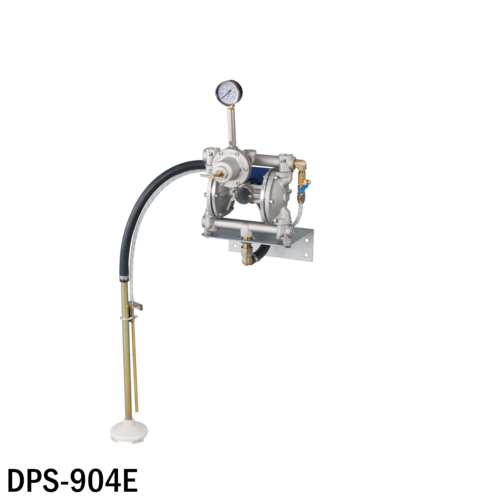

| DPS-904E | -- | aluminum | 1.5 | Ten | 0.15～0.7 | PR-5B-S1 | aluminum | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 50 | TF₋7 100 mesh | - | PR₋5B-S1 | 356×269×449 | 6.0 | 0.4～0.75 | -- | -- | 68 | 5～40 | -- | 0.7 |
| DPS-904EN | -- | stainless | 1.5 | Ten | 0.15～0.7 | PR-5BN-S1 | stainless | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 50 | ⁻ | - | PR₋5BN-S1 | 356×269×449 | 7.0 | 0.4～0.75 | -- | -- | 68 | 5～40 | -- | 0.7 |

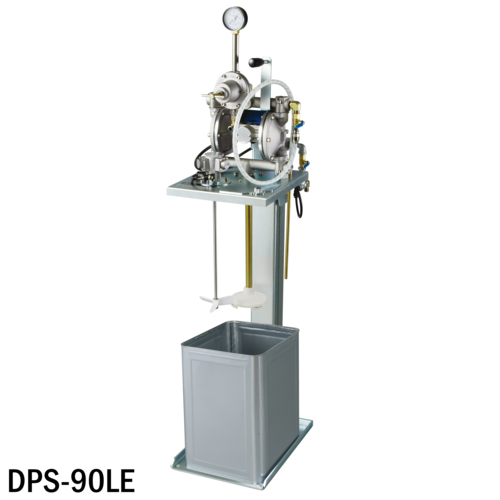

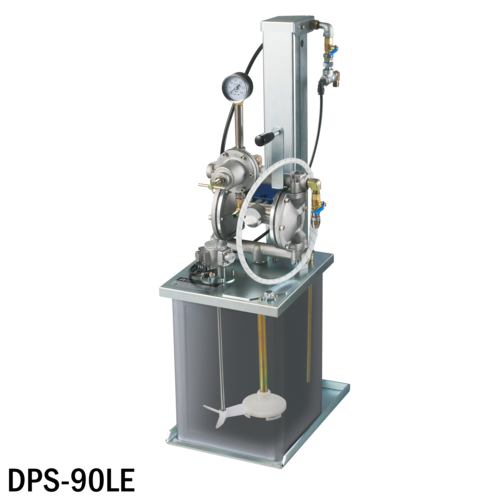

| DPS-90LE | -- | aluminum | 1.5 | Ten | 0.15～0.7 | PR₋5B-S1 | aluminum | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5~40 | G1/4B male | G1/4B male | 50 | 50 | TF₋7 100 mesh | AMM-721B | PR₋5B-S1 | 410×300×823 | 17.0 | 0.4～0.75 | -- | -- | 68 | 5～40 | -- | 0.7 |
| DPS-90LEN | -- | stainless | 1.5 | Ten | 0.15～0.7 | PR-5BN₋S! | stainless | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5~40 | G1/4B male | G1/4B male | 50 | 50 | ⁻ | AMM-721B | PR₋5BN₋S1 | 410×300×823 | 19.0 | 0.4～0.75 | -- | -- | 68 | 5～40 | -- | 0.7 |
| DPS-90LPE | -- | aluminum | 1.5 | Ten | 0.15～0.7 | PR-5B-S1 | aluminum | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 50 | TF₋7 100 mesh | AMM-721B | PR-5B-S1 | 410×300×823 | 18.0 | 0.4～0.75 | -- | -- | 68 | 5～40 | -- | 0.7 |
| DPS-90LPEN | -- | stainless | 1.5 | Ten | 0.15～0.7 | PR₋5BN-S1 | stainless | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 50 | ⁻ | AMM-721B | PR-5BN-S1 | 410×300×823 | 21.0 | 0.4～0.75 | -- | -- | 68 | 5～40 | -- | 0.7 |

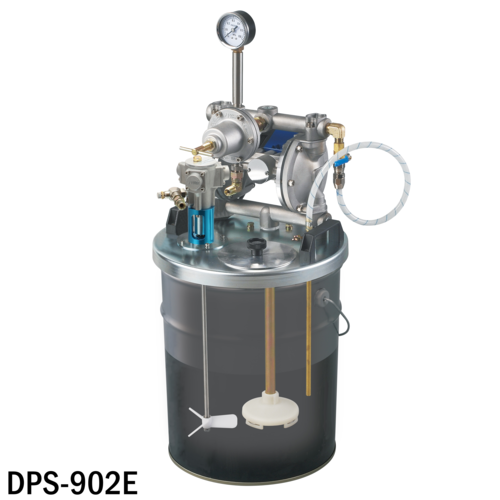

| DPS-902E | -- | aluminum | 1.5 | Ten | 0.15～0.7 | PR₋5B-S1 | aluminum | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 50 | TF₋7 100 mesh | AMM-721B | PR-5B-S1 | 307×325×750 | 6.0 | 0.4～0.75 | -- | -- | 68 | 5～40 | -- | 0.7 |
| DPS-902EN | -- | stainless | 1.5 | Ten | 0.15～0.7 | PR₋5BN-S1 | stainless | 0～0.6 | 2.0 | 300 or less (100 seconds/NK-2 or less) | 5～40 | G1/4B male | G1/4B male | 50 | 50 | ⁻ | AMM-721B | PR-5BN-S1 | 307×325×750 | 8.0 | 0.4～0.75 | -- | -- | 68 | 5～40 | -- | 0.7 |
