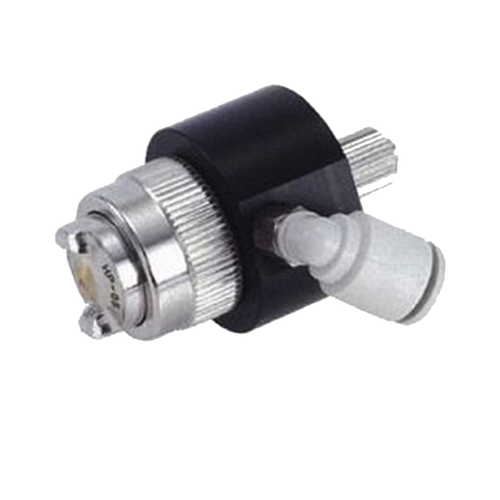

What is eco nozzle?
This device is used for indoor humidification, disinfection, static electricity prevention, dust scattering prevention, simple cooling, etc. No piping work is required, and spraying can be easily performed by simply connecting compressed air.
specification
| format | Paint/liquid supply method | Nozzle diameter [mm] | Blow air pressure Atomizing air [MPa] | Paint/liquid spray amount [mL/min] | (1) Pattern opening/spraying distance [mm] | Air usage [L/min] | spray gun type | nozzle shape | air cap format | Mass [g] | Recommended paint/liquid viscosity [sec/NK-2] | Blow air pressure Pattern air [MPa] | Atomization state | spray pattern | Wetted parts material | Body material | Required compressor [kW] | Connection port size Atomizing air | Connection port size Operating air | Port size Paint/liquid | Purpose | Noise value [dB] | Operating ambient temperature [℃] | Working fluid temperature [℃] | Maximum operating air pressure [MPa] | accessories | remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EN-2 | Suction type | 0.5 | 0.1/0.2/0.3 | 13 | -- | 11 | General purpose | straight nozzle | -- | 90 | -- | -- | General-purpose fine particles | For round blowing only | resin, stainless steel | resin | 0.2～0.4 | Φ6 tube | -- | Φ6 tube | Indoor humidification, dust scattering prevention, simple cooling | 70.0 | 5~40 | 5~43 | 0.50 | Eyeball clip, silicone tube | *1 In the case of fresh water and lifting height of 500mm. |
