Features

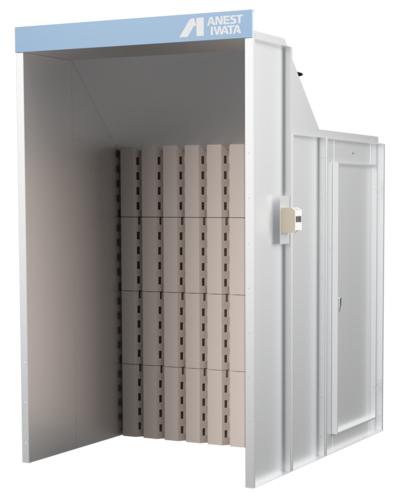

The height of the hood of seven standard baffle booth models has been increased by 500mm. Exhaust fan is standard specification.
*Please note: BB-10G type does not have high ceiling specifications.
specification
| format | Body dimensions Frontage (W) [mm] | Body dimensions Depth (D) [mm] | Body dimensions Ceiling height (h) [mm] | Body dimensions Total height (H) [mm] | Collection efficiency melamine paint | Collection efficiency Lacquer primer paint | Collection efficiency Acrylic urethane paint | Collection efficiency Phthalate-based acrylic paint | Noise (front of device) [dB(A)] | Average wind speed [m/s] | Exhaust fan motor output [kW] | Primary power supply phase | Primary power supply [V] | Frequency [Hz] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BBH-15H-M5 | 1500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 76 | 0.65 | 0.75 | -- | -- | -- |
| BBH-20H-M5 | 2000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBH-25H-M5 | 2500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBH-30H-M5 | 3000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBH-35H-M5 | 3500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBH-40H-M5 | 4000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBH-45H-M5 | 4500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBH-15H-M6 | 1500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 76 | 0.65 | 0.75 | -- | -- | -- |
| BBH-20H-M6 | 2000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBH-25H-M6 | 2500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBH-30H-M6 | 3000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBH-35H-M6 | 3500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBH-40H-M6 | 4000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBH-45H-M6 | 4500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
