Features

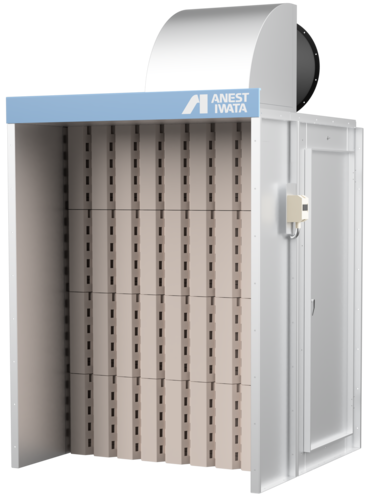

If it is not possible to install an exhaust duct at the top of a standard baffle booth, a 90° bend duct can be used to exhaust from the back.
specification
| format | Body dimensions Frontage (W) [mm] | Body dimensions Depth (D) [mm] | Body dimensions Ceiling height (h) [mm] | Body dimensions Total height (H) [mm] | Collection efficiency melamine paint | Collection efficiency Lacquer primer paint | Collection efficiency Acrylic urethane paint | Collection efficiency Phthalate-based acrylic paint | Noise (front of device) [dB(A)] | Average wind speed [m/s] | Exhaust fan motor output [kW] | Primary power supply phase | Primary power supply [V] | Frequency [Hz] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BBR-10H-M5 | 1000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 80 | 0.65 | 0.75 | -- | -- | -- |
| BBR-15H-M5 | 1500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 76 | 0.65 | 0.75 | -- | -- | -- |
| BBR-20H-M5 | 2000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBR-25H-M5 | 2500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBR-30H-M5 | 3000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBR-35H-M5 | 3500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBR-40H-M5 | 4000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBR-45H-M5 | 4500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBR-10H-M6 | 1000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 80 | 0.65 | 0.75 | -- | -- | -- |
| BBR-15H-M6 | 1500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 76 | 0.65 | 0.75 | -- | -- | -- |
| BBR-20H-M6 | 2000 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBR-25H-M6 | 2500 | 1500 | 2000 | 2475 | 96 | 92 | 88 | 90 | 82 | 0.65 | 1.5 | -- | -- | -- |
| BBR-30H-M6 | 3000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBR-35H-M6 | 3500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 79 | 0.65 | 2.2 | -- | -- | -- |
| BBR-40H-M6 | 4000 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
| BBR-45H-M6 | 4500 | 1500 | 2000 | 2545 | 96 | 92 | 88 | 90 | 84 | 0.65 | 3.7 | -- | -- | -- |
