Features

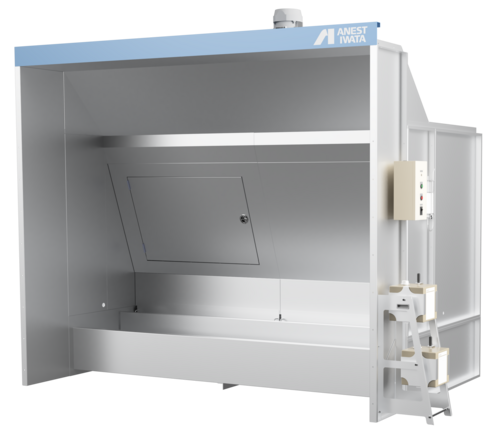

The height of the hood part of the standard Venturi booth is increased by 500mm, and the exhaust fan is standard specification.
Other accessories
・Sludge Killer (SK-510/520 1 box each)
・Swing rack (pour stand exclusively for sludge killer)
・2 measuring cups
・1 roll of pH test paper
specification
| format | Body dimensions Frontage (W) [mm] | Body dimensions Depth (D) [mm] | Body dimensions Ceiling height (h) [mm] | Body dimensions Total height (H) [mm] | Collection efficiency melamine paint | Collection efficiency Lacquer primer paint | Collection efficiency Acrylic urethane paint | Collection efficiency Phthalate-based acrylic paint | Noise (front of device) [dB(A)] | Average wind speed [m/s] | Exhaust fan motor output [kW] | Primary power supply phase | Primary power supply [V] | Frequency [Hz] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VBH-15F-M5 | 1500 | 2000 | 2500 | 2912 | 97 | 96 | 93 | 95 | 80 | 0.6 | 3.7 | -- | -- | -- |
| VBH-20F-M5 | 2000 | 2000 | 2500 | 2965 | 97 | 96 | 93 | 95 | 80 | 0.6 | 3.7 | -- | -- | -- |
| VBH-25F-M5 | 2500 | 2000 | 2500 | 3008 | 97 | 96 | 93 | 95 | 81 | 0.6 | 5.5 | -- | -- | -- |
| VBH-30F-M5 | 3000 | 2000 | 2500 | 3008 | 97 | 96 | 93 | 95 | 82 | 0.6 | 5.5 | -- | -- | -- |
| VBH-35F-M5 | 3500 | 2000 | 2500 | 3225 | 97 | 96 | 93 | 95 | 83 | 0.6 | 7.5 | -- | -- | -- |
| VBH-40F-M5 | 4000 | 2000 | 2500 | 3261 | 97 | 96 | 93 | 95 | 84 | 0.6 | 11 | -- | -- | -- |
| VBH-50F-M5 | 5000 | 2000 | 2500 | 3325 | 97 | 96 | 93 | 95 | 85 | 0.6 | 11 | -- | -- | -- |
| VBH-15F-M6 | 1500 | 2000 | 2500 | 2912 | 97 | 96 | 93 | 95 | 80 | 0.6 | 3.7 | -- | -- | -- |
| VBH-20F-M6 | 2000 | 2000 | 2500 | 2912 | 97 | 96 | 93 | 95 | 80 | 0.6 | 3.7 | -- | -- | -- |
| VBH-25F-M6 | 2500 | 2000 | 2500 | 2952 | 97 | 96 | 93 | 95 | 81 | 0.6 | 5.5 | -- | -- | -- |
| VBH-30F-M6 | 3000 | 2000 | 2500 | 3008 | 97 | 96 | 93 | 95 | 82 | 0.6 | 5.5 | -- | -- | -- |
| VBH-35F-M6 | 3500 | 2000 | 2500 | 3046 | 97 | 96 | 93 | 95 | 83 | 0.6 | 7.5 | -- | -- | -- |
| VBH-40F-M6 | 4000 | 2000 | 2500 | 3079 | 97 | 96 | 93 | 95 | 84 | 0.6 | 11 | -- | -- | -- |
| VBH-50F-M6 | 5000 | 2000 | 2500 | 3261 | 97 | 96 | 93 | 95 | 85 | 0.6 | 11 | -- | -- | -- |
