Features

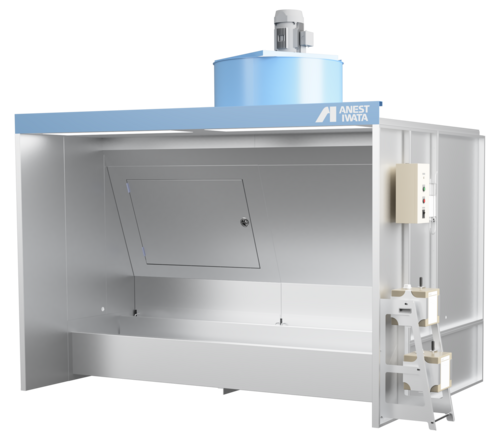

This is a standard venturi booth with LED lighting installed.

Other accessories

・Sludge Killer (SK-510/520 1 box each)
・Swing rack (pour stand exclusively for sludge killer)
・2 measuring cups
・1 roll of pH test paper

specification

formatBody dimensions Frontage (W) [mm]Body dimensions Depth (D) [mm]Body dimensions Ceiling height (h) [mm]Body dimensions Total height (H) [mm]Collection efficiency melamine paintCollection efficiency Lacquer primer paintCollection efficiency Acrylic urethane paintCollection efficiency Phthalate-based acrylic paintNoise (front of device) [dB(A)]Average wind speed [m/s]Exhaust fan motor output [kW]Primary power supply phasePrimary power supply [V]Frequency [Hz]
VBL-15F-M5 1500 2000 2000 2912 97 96 93 95 80 0.6 3.7 Three-phase 200 50
VBL-20F-M5 2000 2000 2000 2965 97 96 93 95 80 0.6 3.7 Three-phase 200 50
VBL-25F-M5 2500 2000 2000 3008 97 96 93 95 81 0.6 5.5 Three-phase 200 50
VBL-30F-M5 3000 2000 2000 3008 97 96 93 95 82 0.6 5.5 Three-phase 200 50
VBL-35F-M5 3500 2000 2000 3100 97 96 93 95 83 0.6 7.5 Three-phase 200 50
VBL-40F-M5 4000 2000 2000 3136 97 96 93 95 84 0.6 11 Three-phase 200 50
VBL-50F-M5 5000 2000 2000 3200 97 96 93 95 85 0.6 11 Three-phase 200 50
VBL-15F-M6 1500 2000 2000 2912 97 96 93 95 80 0.6 3.7 Three-phase 200 60
VBL-20F-M6 2000 2000 2000 2912 97 96 93 95 80 0.6 3.7 Three-phase 200 60
VBL-25F-M6 2500 2000 2000 2952 97 96 93 95 81 0.6 5.5 -- -- --
VBL-30F-M6 3000 2000 2000 3008 97 96 93 95 82 0.6 5.5 Three-phase 200 60
VBL-35F-M6 3500 2000 2000 3046 97 96 93 95 83 0.6 7.5 Three-phase 200 60
VBL-40F-M6 4000 2000 2000 3079 97 96 93 95 84 0.6 11 -- -- --
VBL-50F-M6 5000 2000 2000 3136 97 96 93 95 85 0.6 11 Three-phase 200 60
