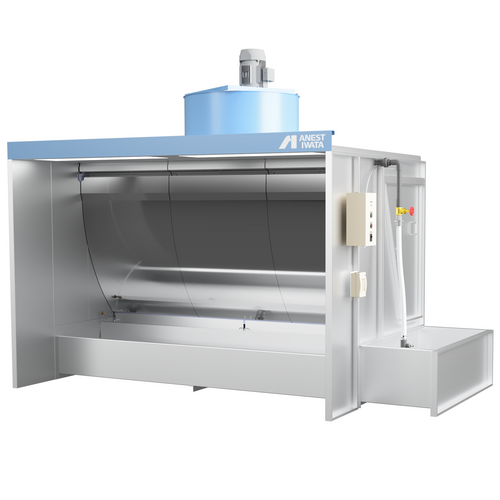

Features


It exhibits excellent collection efficiency in suppressing paint mist from scattering outdoors and in areas with harsh installation environment conditions .

Other accessories

・Sludge Killer (SK-510/520 1 box each)
・Swing rack (pour stand for sludge killer)
・2 measuring cups
・1 roll of pH test paper
・Sandpaper (P400)

Base price

Please contact us for the price of the product.

specification

formatBody dimensions Frontage (W) [mm]Body dimensions Depth (D) [mm]Body dimensions Ceiling height (h) [mm]Body dimensions Total height (H) [mm]Collection efficiency melamine paintCollection efficiency Lacquer primer paintCollection efficiency Acrylic urethane paintCollection efficiency Phthalate-based acrylic paintNoise (front of device) [dB(A)]Average wind speed [m/s]Exhaust fan motor output [kW]Primary power supply phasePrimary power supply [V]Frequency [Hz]
VBWL-15F-M5 1500 2000 2000 2912 99 99 97 98 81 0.6 0.4 Three-phase 200 50
VBWL-20F-M5 2000 2000 2000 2965 99 99 97 98 81 0.6 0.4 Three-phase 200 50
VBWL-25F-M5 2500 2000 2000 3008 99 99 97 98 81 0.6 0.75 Three-phase 200 50
VBWL-30F-M5 3000 2000 2000 3008 99 99 97 98 81 0.6 0.75 Three-phase 200 50
VBWL-15F-M6 1500 2000 2000 2912 99 99 97 98 81 0.6 0.4 Three-phase 200 60
VBWL-20F-M6 2000 2000 2000 2965 99 99 97 98 81 0.6 0.4 Three-phase 200 60
VBWL-25F-M6 2500 2000 2000 2952 99 99 97 98 81 0.6 0.75 Three-phase 200 60
VBWL-30F-M6 3000 2000 2000 3008 99 99 97 98 81 0.6 0.75 Three-phase 200 60
