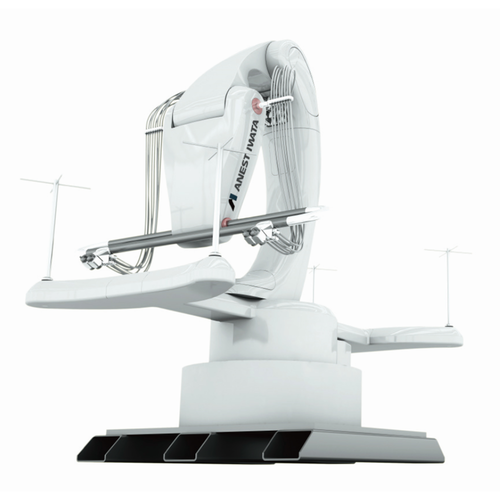

What is SWAN?
SWAN is a painting robot that was developed with the aim of being easy for anyone to operate.
It is an all-in-one system that includes the equipment necessary for painting, and is designed to be ready for painting immediately after being installed in the painting booth.
Features
・Equipped with software "SWANIST" that realizes offline teaching.
・Safety due to the use of a pressure-resistant explosion-proof motor
・No major on-site construction required, just installation adjustments
・Equipped with a dedicated spray gun (low pressure, atomization, uniform pattern, easy maintenance)
・Minimum amount of paint and thinner used Paint supply system that has been kept to a minimum
specification
| format | Swanpro standard specification explosion-proof painting robot body weight [kg] | Swan Pro Standard Specifications Electric Capacity [V･kVA] | Swan Pro Standard Specification Compressed Air [MPa] | Swan Pro Standard Specifications Compressed Air [L/min] | Swan Pro Standard Specifications Payload [kg] | Swan Pro Standard Specification Maximum Number of Guns [Gun] | Swanpro standard specifications Operating speed [mm/s] | Swanpro standard specifications Position repeatability [mm] | Swanpro standard specifications Control panel weight [kg] | W-turn Transport device Transportable device [kg] | Distance between W turntables [mm] | W turn distance [mm] | W turn rotation speed [deg/sec] | W Turntable rotation speed [rpm] | W-turn Maximum workpiece size Diameter [mm] | W-turn Maximum workpiece dimensions Height [mm] | W turn Motor capacity W turn [W] | W turn motor capacity table [W] | Control panel Number of control axes Robot | Control panel Number of control axes Work rotation device | Control panel Number of control axes Paint supply device | Control panel Control method PTP control (with interpolation function), CP control | Control panel teaching method | control panel monitor | Control panel Data recording medium | Control panel External storage medium |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWANPRO-1600-4T | Approximately 680 | AC200 (3 phase), 3 | 0.5 | 400 | Five | Four | 800 | ±0.5 | Approximately 200 | 5kg/table(4TOP)・10kg/table(2TOP).OP | 750 | 1600 | 45 | ±200 | 500 | 500 | 200W explosion proof motor | 200W explosion proof motor | 4 axes | 3 axes | Maximum 2 units | PTP control (with interpolation function), CP | Selection of interactive package program, PACK teaching, and PTP teaching using a PC | -- | 23.8 inch, full color HD | flash disk |
