The optimal number of units is controlled according to the amount of air used.
Purpose
The optimal number of units is controlled according to the amount of air used.
explanation

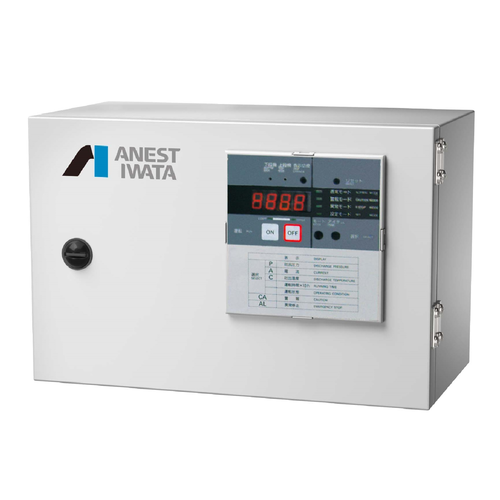

We offer MUC-2 for controlling reciprocating compressors, scroll compressors, and booster compressors, and IPC-4/7 for controlling screw compressors and claw compressors.
Specification
| format | Number of control units | Output/power supply | Power consumption [VA] | Control pressure [MPa] | function | Display items | External dimensions (total width x depth x total height) [mm] | Mass [kg] |
|---|---|---|---|---|---|---|---|---|
| MUC-2 | 4 units (maximum) | No-voltage contact AC200V±10% | 50VA | 0.3～2.0 | Rotary control, simultaneous start/stop, alternating control (2×2), skip control, backup function, etc. | Tank pressure, set value, driving machine | 350×183×230 | 6 |
| IPC-4 | 4 units (maximum) | -- | -- | 0.1~1.3 | -- | -- | 500×600×200 | -- |
| IPC-7 | 7 units (maximum) | -- | -- | 0.1~1.3 | -- | -- | 500×600×200 | -- |
*1. An air tank is required.
*2. Please contact our branch/sales office for information on connectable models and connection methods.
*3. The specifications listed are subject to change without notice due to product improvement.
