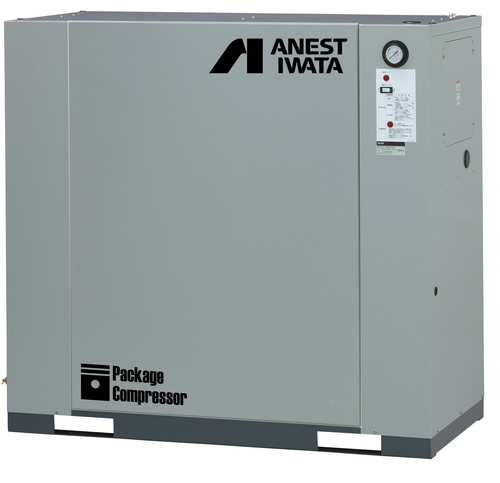

The packaging makes it extremely quiet. It also comes standard with an oil alarm. High pressure 1.4MPa, dryer integrated type is also available.

Purpose

・Air source for operating general industrial machinery, etc.

Features

- Clears basic performance as well as durability and safety at a high level. Maintenance is also easy.
・Since it is a package type, it has excellent quietness.
-Equipped with an oil alarm as standard.
・Because it is controlled by a pressure switch, the structure is simple and maintenance is easy.

Specification

format[Electric motor] Output [kW]Control pressure lower limit [MPa]Control pressure upper limit [MPa]Discharge air volume 50Hz/60Hz [L/min][Electric motor] Power supply
CLP15EF-8.5 1.5 0.7 0.85 170 AC200V
CLP22EF-8.5 2.2 0.7 0.85 295 AC200V
CLP37EF-8.5 3.7 0.7 0.85 415 AC200V
CLP55EF-8.5 5.5 0.7 0.85 605 AC200V
CLP75EF-8.5 7.5 0.7 0.85 845 AC200V
CLP110EF-8.5 11 0.7 0.85 1215 AC200V
CLP15EF-8.5D 1.5 0.7 0.85 170 AC200V
CLP22EF-8.5D 2.2 0.7 0.85 295 AC200V
CLP37EF-8.5D 3.7 0.7 0.85 415 AC200V
CLP55EF-8.5D 5.5 0.7 0.85 605 AC200V
CLP75EF-8.5D 7.5 0.7 0.85 845 AC200V
CLP110EF-8.5D 11 0.7 0.85 1215 AC200V
CLP37EFH-8.5 3.7 0.7 0.85 415 AC200V
CLP55EFH-8.5 5.5 0.7 0.85 605 AC200V
CLP75EFH-8.5 7.5 0.7 0.85 845 AC200V
CLP110EFH-8.5 11 0.7 0.85 1215 AC200V
CLP37EFH-8.5D 3.7 0.7 0.85 415 AC200V
CLP55EFH-8.5D 5.5 0.7 0.85 605 AC200V
CLP75EFH-8.5D 7.5 0.7 0.85 845 AC200V
CLP110EFH-8.5D 11 0.7 0.85 1215 AC200V
CLP22EF-14 2.2 1.15 1.40 235 AC200V
CLP37EF-14 3.7 1.15 1.40 390 AC200V
CLP55EF-14 5.5 1.15 1.4 570 AC200V
CLP75EF-14 7.5 1.15 1.4 740 AC200V
CLP110EF-14 11 1.15 1.4 1075 AC200V
CLP22EF-14D 2.2 1.15 1.40 235 AC200V
CLP37EF-14D 3.7 1.15 1.4 390 AC200V
CLP55EF-14D 5.5 1.15 1.4 570 AC200V
CLP75EF-14D 7.5 1.15 1.4 740 AC200V
CLP110EF-14D 11 1.15 1.4 1075 AC200V
