Features

・Ideal for customers who want to easily use low-purity nitrogen gas
・Space saving compared to PSA type models
・High nitrogen gas discharge pressure

specification

formatPurity 2N/3N/4N/5N [vol%]Generation amount 2N/3N/4N/5N [N㎥/h]Discharge pressure [MPa][Others] External dimensions Overall width W [mm] x Depth L [mm] x Overall height H [mm][Others] Approximate weight [kg][Electric motor] Power supply
NM-07 L type: 97/M type: 99/H type: 99.9 L type: 1.26/M type: 0.6/H type: 0.24 0.7 160×500×700 35 AC100V

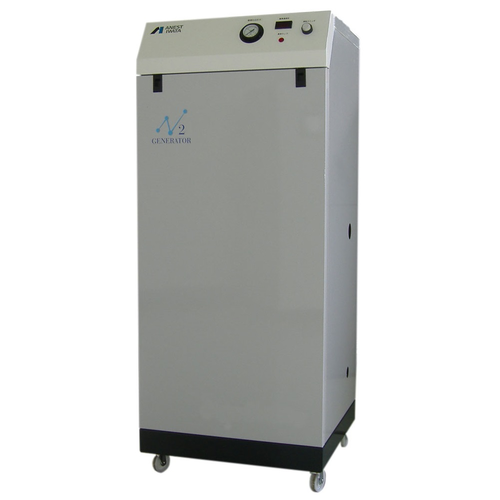

NM-15 L type: 97/M type: 99/H type: 99.9 L type: 4.2/M type: 2.1/H type: 0.72 0.7 560×545×1370 60 AC200V

・The amount generated is the maximum amount generated when the device is in an environment with a temperature of 20℃ and humidity of 60% RH, and the filter etc. is not clogged, and is a value converted to 0℃ and atmospheric pressure. The amount generated will differ if the temperature and humidity conditions are different
