Features

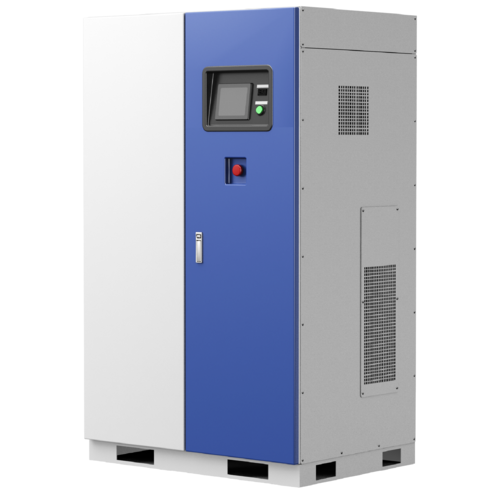

・Uses the PSA method to extract high-purity nitrogen
・Built-in oil-free scroll compressor realizes extremely quiet operation and saves space, creating a
comfortable working environment. Additionally, installation and operation are easier than models with a separate air source.
・Easy operation with color touch panel
The color touch panel displays various information such as operating status such as nitrogen gas pressure and nitrogen gas purity at the device outlet, as well as warnings of occurrence of trouble and periodic maintenance.
Detailed settings depending on the situation, such as timer operation functions, can be input easily and intuitively.
specification
| format | Purity 2N/3N/4N/5N [vol%] | Generation amount 2N/3N/4N/5N [N㎥/h] | Discharge pressure [MPa] | [Electric motor] Main motor output [kW] | air intake | Nitrogen gas outlet | [Others] External dimensions Overall width W [mm] x Depth L [mm] x Overall height H [mm] | [Others] Approximate weight [kg] |
|---|---|---|---|---|---|---|---|---|
| NP-15CF | 99/99.9/99.99/₋ | 3.3/2.4/1.8 | 0.50~0.55 | -- | Rc1/2 | Rc1/2 | 800 x 730 x 1420 (protrusions are not included) | 340 |
| NP-22CF | 99/99.9/99.99/₋ | 5.2/3.7/2.7 | 0.50~0.55 | 2.2 | Rc1/2 | Rc1/2 | 800 x 730 x 1420 (protrusions are not included) | 350 |
| NP-37CF | 99/99.9/99.99/₋ | 8.6/6.2/4.5 | 0.50~0.55 | 3.7 | Rc1/2 | Rc1/2 | 910 x 850 x 1620 (protrusions not included) | 450 |
| NP-55CF | 99/99.9/99.99/₋ | 13.0/9.3/6.0 | 0.50~0.55 | 5.9 | Rc1/2 | Rc3/4 | 1,850 x 850 x 1,700 (protrusions not included) | 600 |
| NP-75CF | 99/99.9/99.99/₋ | 16.5/11.5/8.0 | 0.50~0.55 | 7.4 | Rc1/2 | Rc3/4 | 1850 x 850 x 1700 (protrusions are not included) | 700 |
| NP-110CF | 99/99.9/99.99/₋ | 26.0/18.0/12.0 | 0.50~0.55 | 11.1 | Rc1/2 | Rc3/4 | 1700×1230×1825 (not including special mentions) | 1400 |
| NP-150CF | -- | 34.0/24.0/15.5 | 0.50~0.55 | 14.8 | Rc3/4 | Rc3/8 | 2100 x 1280 x 1950 (Protrusions are not included) | 1700 |
・The amount generated is the maximum amount generated when the device is in an environment with a temperature of 20℃ and humidity of 60% RH, and the filter etc. is not clogged, and is a value converted to 0℃ and atmospheric pressure. The amount generated will differ if the temperature and humidity conditions are different. ・The nitrogen gas generation amount, nitrogen gas discharge pressure, and required raw material air amount are the values when the raw material air pressure is 0.83MPa. For 0.69MPa, the value is in parentheses.
