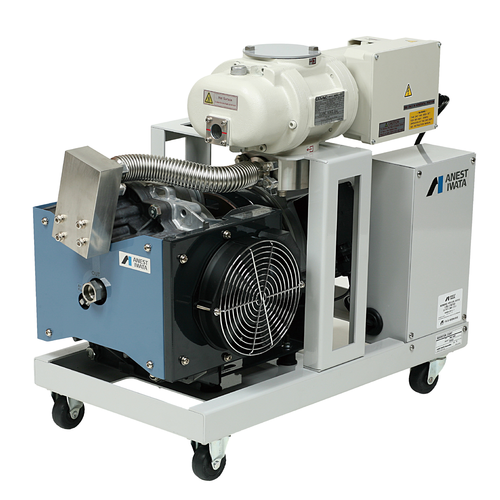

A large displacement unit that combines a mechanical booster. For customers looking for exhaust speed.

Features

 ・General- purpose vacuum pump GVS-500E is used as a large displacement unit roughing pump combined with a mechanical booster.
　By combining an oil-free scroll vacuum pump and a mechanical booster, we have increased the displacement and ultimate pressure while maintaining the ease of use of the GVS.
　It has casters, so it has excellent mobility.
・Clean exhaust/vacuum
　Since an oil-free scroll vacuum pump is used, there is no need to worry about back diffusion of lubricating oil, and clean exhaust can be obtained.
-Easy to operate/Energy saving
　This unit allows you to start the roughing pump and booster pump at the same time with a single button.
　Also, if pumping speed is not required. The scroll vacuum pump can also be operated independently using the ON/OFF switch on the booster.
　It is effective for energy saving by switching the operation when necessary.

Use applications

Vacuum chuck, gas replacement, vacuum forming, central vacuum exhaust, etc.

Safety precautions

This vacuum pump has clean exhaust specifications.
Do not pour gases that are toxic to the human body, explosive or flammable gases, corrosive gases, chemicals, solvents, powders, etc.
Please note that we cannot undertake maintenance for pumps that exhaust special gases, etc.
Please use within the ambient temperature range of 5℃ to 40℃.

specification
