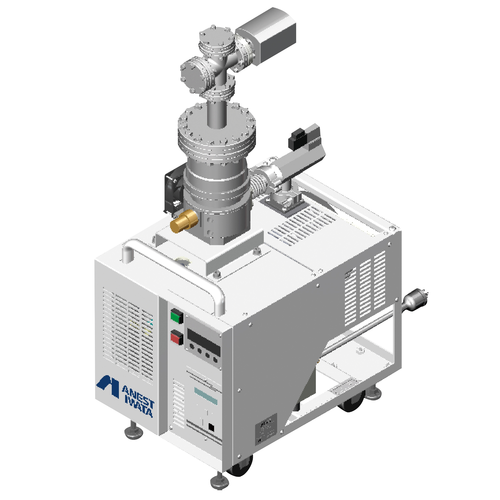

High vacuum pumping system combined with a turbo molecular pump. A large model that can be customized to suit your needs.
Features
・Clean exhaust
A complete oil-free high vacuum exhaust system due to the combination of an oil-free scroll vacuum pump and a turbo molecular pump.
- Compact
Since it is extremely compact and requires little installation space, it can be installed close to the equipment you are currently using.
・Easy to operate:
Manual operation allows you to operate the scroll vacuum pump and turbomolecular pump individually, and automatic operation* allows you to start them simultaneously with a single button.
You can choose according to your usage.
*When performing automatic operation, there is a limit to the capacity including the chamber and piping parts.
Use applications
Accelerators, X-ray spectrometers, synchrotron radiation, electron microscopes, leak test
various testing and analysis devices, mass spectrometers, auxiliary high vacuum evacuation devices, surface analysis devices, etc.
specification
format | [Turbo molecular pump unit] Unit ultimate pressure 50Hz [Pa] | [Turbo molecular pump unit] Unit ultimate pressure 60Hz [Pa] | [Turbo molecular pump unit] Turbo molecular pump manufacturer | [Turbo molecular pump unit] Turbo molecular pump type | [Turbo molecular pump unit] Rough pump manufacturer | [Turbo molecular pump unit] Coarse pump type | [Turbo molecular pump unit] Number of coarse pumps installed | [Electric motor] phase | [Others] RoHS compliant | [Others] Options | [Others] Operating ambient temperature [℃] | [Others] External dimensions Overall width W [mm] x Depth L [mm] x Overall height H [mm] |
---|---|---|---|---|---|---|---|---|---|---|---|---|
VTC-220-BV1 | 10-6 units | 10-6 units | Osaka Vacuum Equipment Manufacturing Co., Ltd. | TG220F | Anest Iwata | ISP-250C-SV | 1 | Single-phase | Nothing | -- | 10~32 | 350×490×918 |
VTC-220-BV2 | 10-6 units | 10-6 units | Osaka Vacuum Equipment Manufacturing Co., Ltd. | TG220F | Anest Iwata | ISP-250C-SV | 1 | Single-phase | Nothing | -- | 10~32 | 350×490×918 |
